Engine Timing Tool Kit-- For Audi 2.9L & 3.0L

Professional Engine Timing Tool Kit for Audi EA839 (2.9T & 3.0T TFSI)

Precision Alignment for High-Performance V6 Engines

When it comes to servicing the Audi B9/C8 platform (S4, S5, RS4, SQ5, Q7, Q8), timing accuracy is paramount. Our T40331 Equivalent Timing Tool Kit is engineered specifically for the EA839 2.9L and 3.0L TFSI engines. Whether you are addressing timing chain rattle or performing a complete engine overhaul, this kit ensures factory-level precision.

Key Compatibility: 06M109088K & 06M109088H

We stay ahead of OE updates. Our kit is verified for perfect fitment with the latest 06M 109 088 K camshaft adjusters. We’ve optimized our spline adapters to seat perfectly into the center housing, allowing you to apply the required high torque (80 Nm + 90°) without the risk of slipping or damaging the part.

• Supported Models: Audi S4, S5, SQ5, RS4, RS5, A6, A7, A8, Q7, Q8 (2017-Present).

• Engine Codes: CWGD, CZSE, DECA, DLZA.

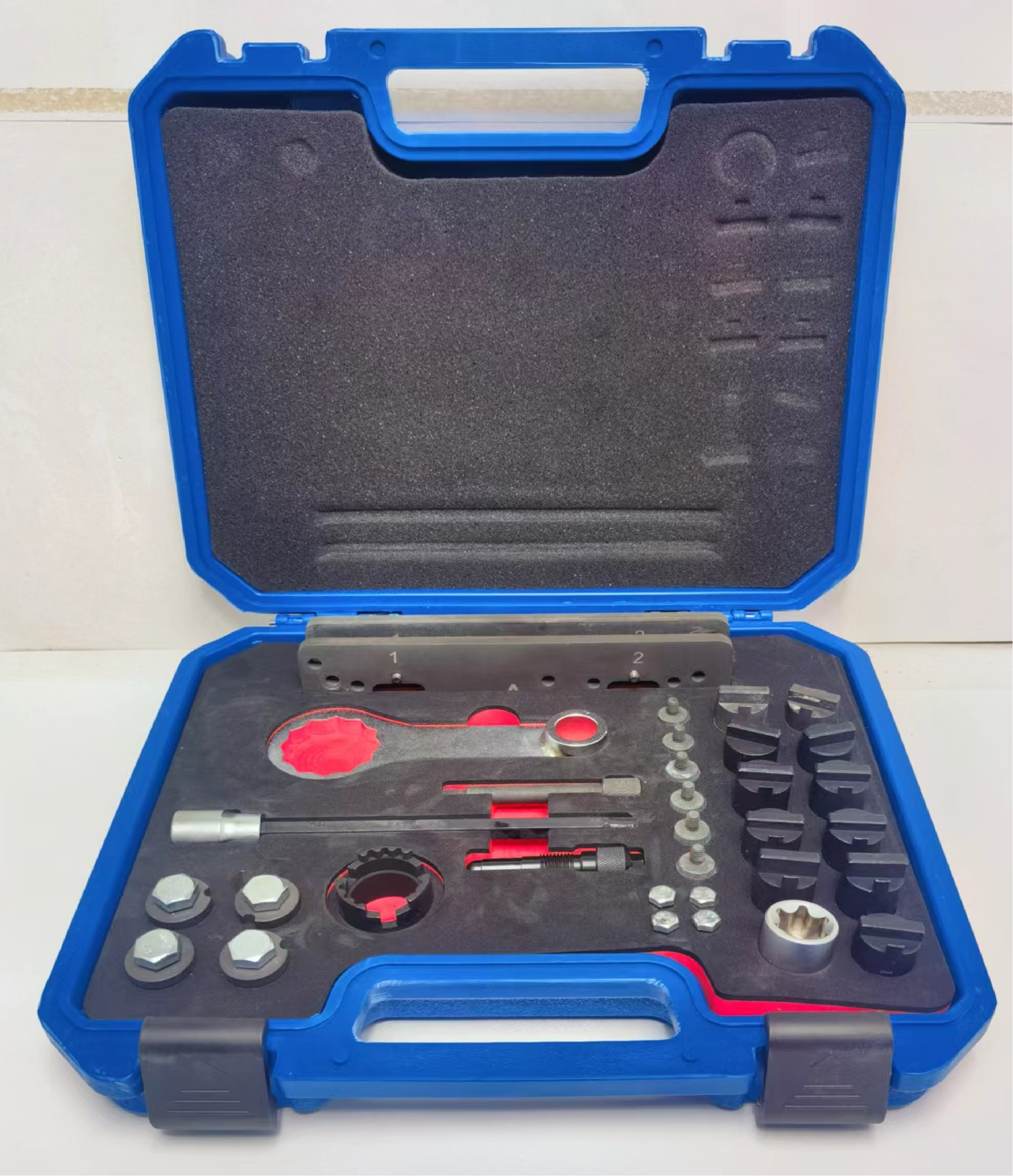

What’s Included in the Box?

This comprehensive set covers every critical step of the timing procedure:

1. Camshaft Locking Plates (T40331/1 & /2): Heavy-duty steel plates to lock camshafts at the rear.

2. Crankshaft TDC Locking Pin: Securely fixes the crankshaft at Top Dead Center.

3. Specialized Spline Adapters: Designed for the unique 22mm/20mm interface of EA839 adjusters.

4. High-Leverage Counter-hold Wrench: For safe tightening of the central bolts.
